Littelfuse PDM - Fuse & Relay Box (18 Position)
Littelfuse PDM - Fuse & Relay Box (18 Position)
Regular price
$61.50 AUD
Regular price
Sale price
$61.50 AUD
Unit price
/
per
Taxes included.
Shipping calculated at checkout.
No reviews
Couldn't load pickup availability

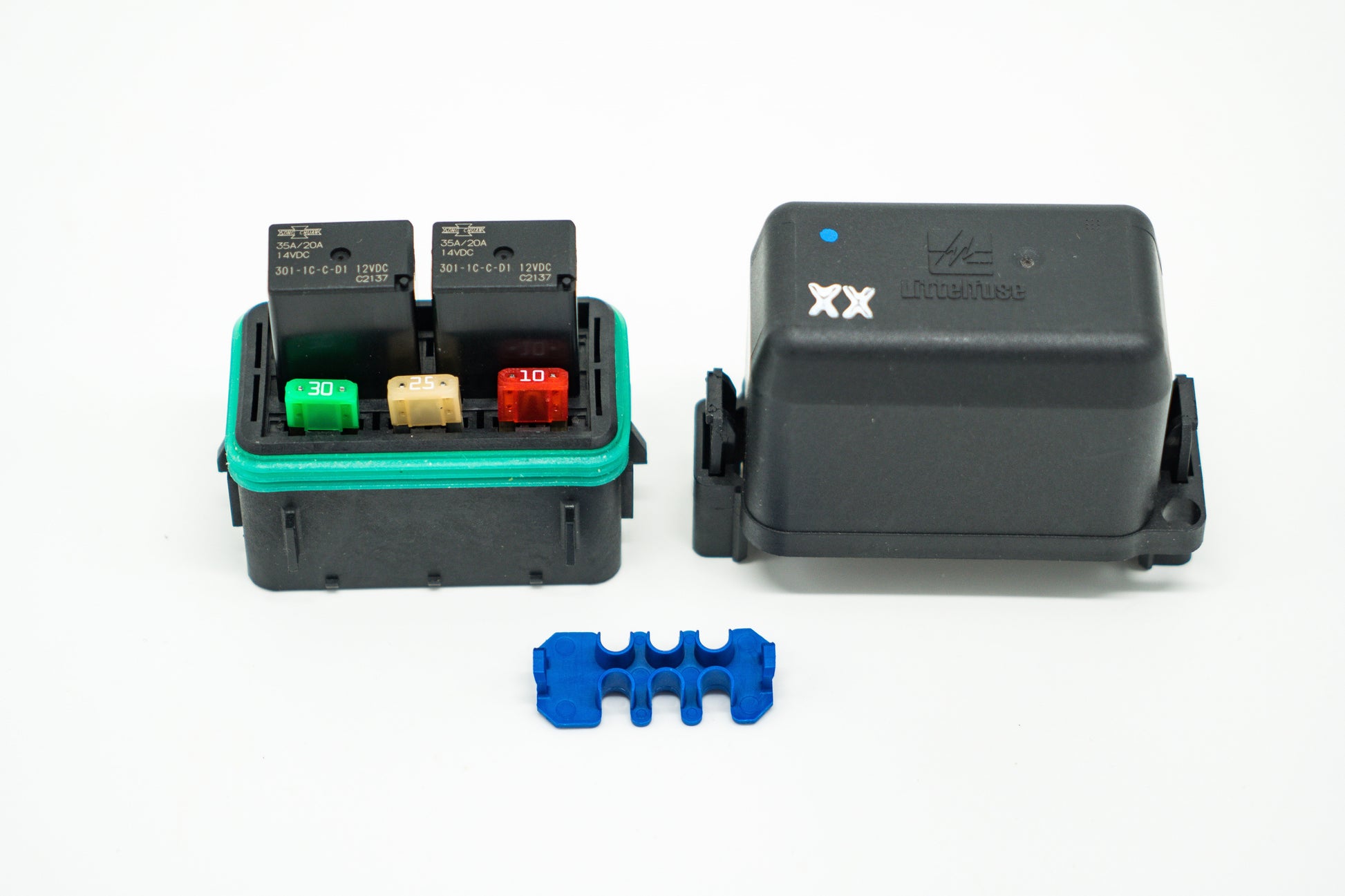

This Littelfuse PDM features 18 cavities and is the perfect fit for accessory circuits and overflow circuits from your main Power Distribution module. The unit can hold plug-in components including MINI fuses, MINI format circuit breakers, 4-pin single throw relays, and 5-pin double throw relays. Featuring an IP67/IP69K rating, this compact and durable unit allows the user to customize their own circuitry.
This unit utilises direct wire-to-component connections which are crimped to the wire harness with grommets to seal the bottom of the module.
Specifications
| Max Fuse Rating | 30A per circuit |
| Max Continuous Current | 100A at 23 °C, 70A at 85 °C |
| Number of Cavities | 18 |
| Recommended Mounting | M6 bolt and lock washer |
| Temperature Range | -40 °C to +105 °C |
| Ingress Protection Rating | IP67 |
| Dimensions | 80.4x69.8x45.2 mm |
| Wire Sizes | 22 AWG - 12 AWG (0.35-3.00 mm²) |
| Mating Terminals & Seals | Delphi Metri-Pack 280 Sealed female (tanged) |
