Littelfuse PDM - Fuse & Relay Box (60 Position)
Littelfuse PDM - Fuse & Relay Box (60 Position)
Couldn't load pickup availability

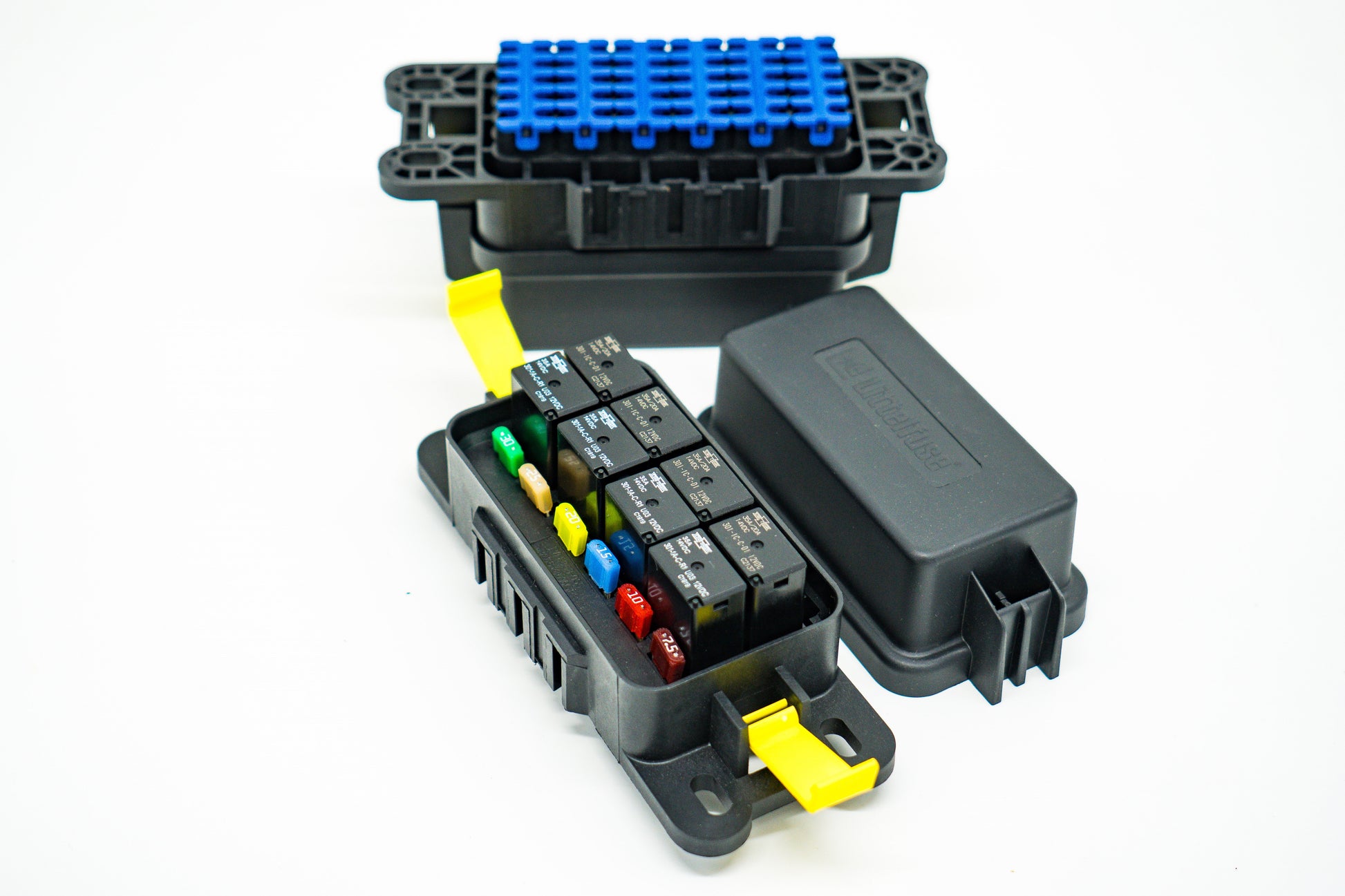

This Littelfuse PDM features 60 cavities creating a high density fuse module with a compact footprint for use with 280 style components (i.e. mini-fuses, relays, diodes, resistors, etc.). Featuring an IP67/IP69K rating and a modular design, it allows you to create your ideal fuse box. Wires simply plug into the back of the module using sealed Delphi Metri-Pack Series 280 tanged terminals. this compact and durable unit allows the user to customize their own circuitry.
Multiple units can be dovetailed together to expand circuit protection capacity. They can also be interlocked to other Littelfuse PDMs and fuseholders (i.e. FLEC, MEGA Flex holder, MIDI Flex holder, etc.) for complete system protection.
Specifications
| Max Fuse Rating | 30A per circuit |
| Max Continuous Current | 250A |
| Number of Cavities | 60 |
| Recommended Mounting | M6 bolt and lock washer |
| Temperature Range | -40 °C to +85 °C |
| Ingress Protection Rating | IP67 |
| Dimensions | 158 x 66 x 79 mm |
| Wire Sizes | 22 AWG - 10 AWG (0.35-3.00 mm²) |
| Mating Terminals & Seals | Delphi Metri-Pack 280 Sealed female (tanged) |
